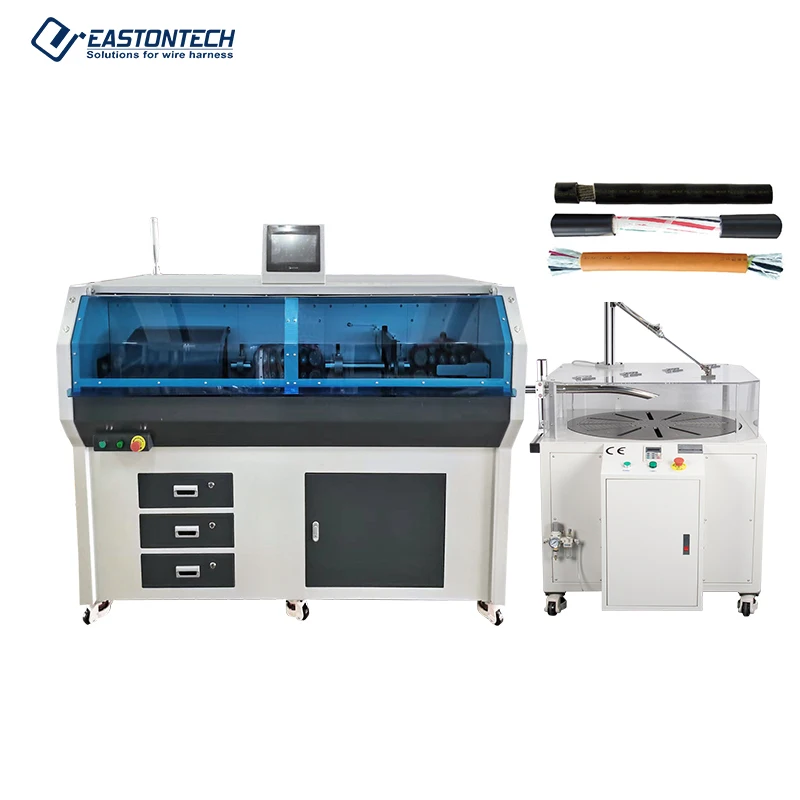

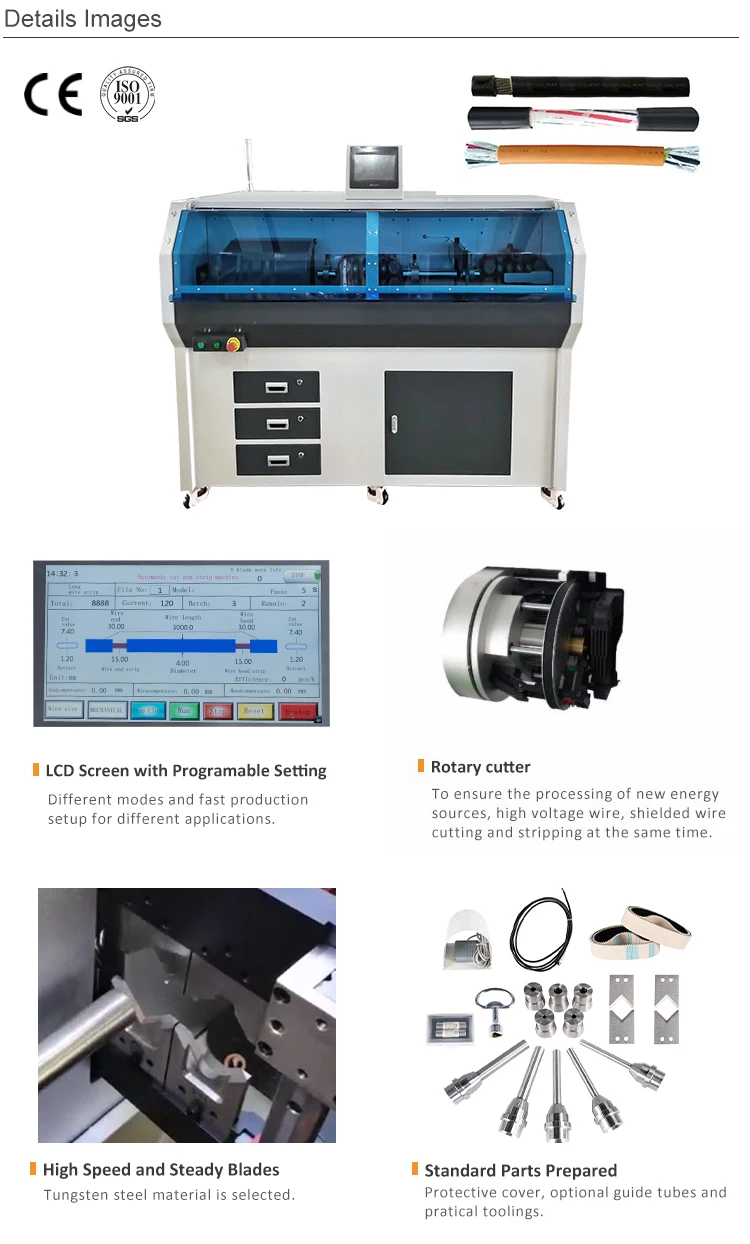

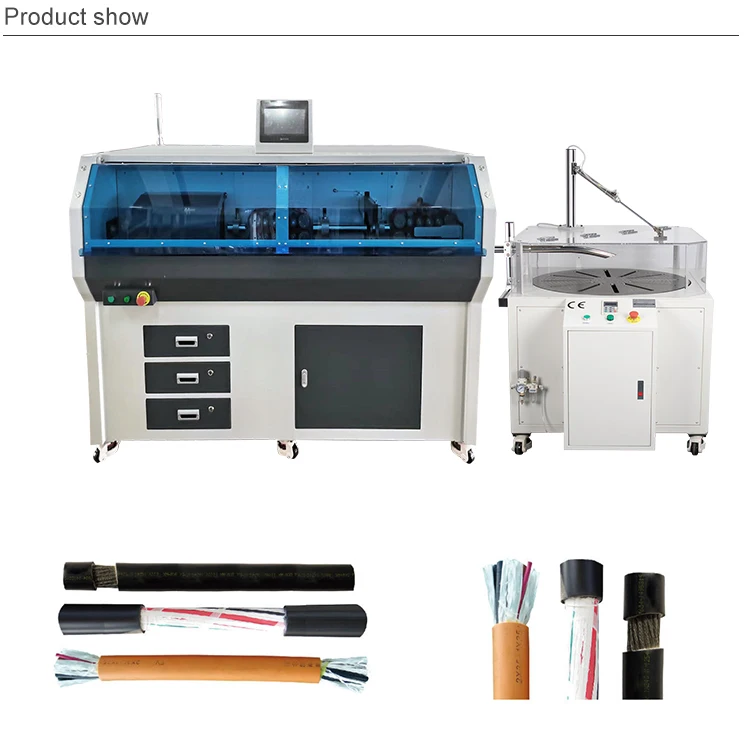

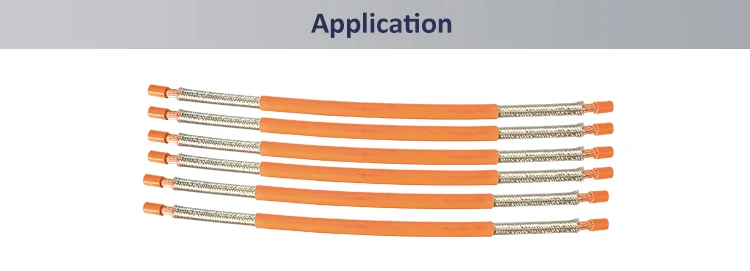

1. New mode cable processing equipment that controlled by micro computer, mainly for the processing of large cables used for new energy charging gun, electrical power and other industries, which essentially solves the problem in processing. of the big power cable.

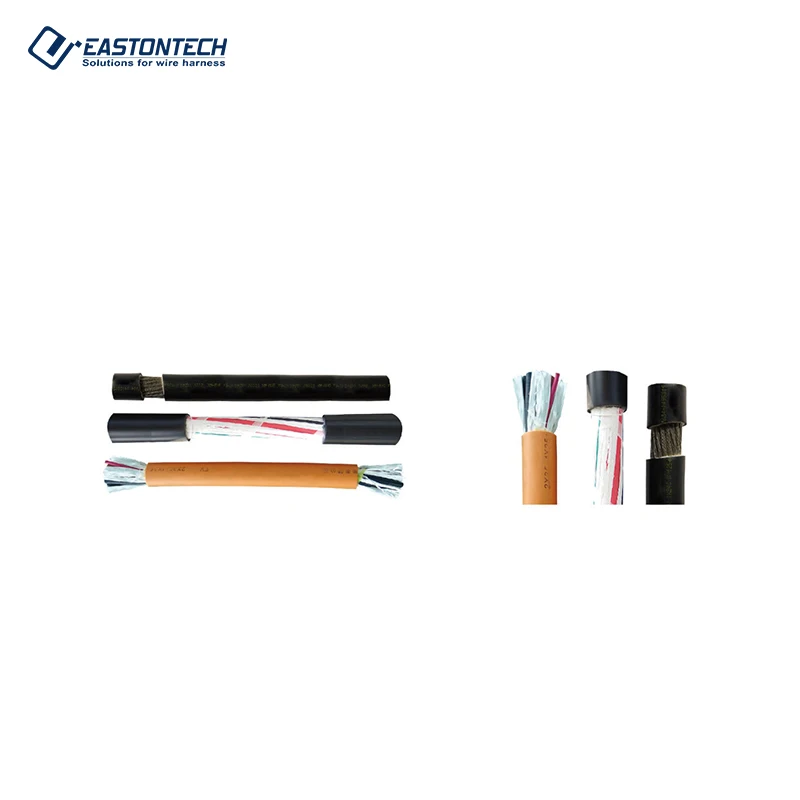

2. Automatic wire cutting, two ends stripping, and also multi-layers stripping at one time.
3. Industrial level control chip and high precise servo driving to ensure its high speed and stable running.
4. PLC control system, touching screen operating.
5. Belt style driving without any pressing marks.
6. The cable (within 240 mm2) can be easily processed, the strong driving force ensures the high working eficiency.
Our wire stripping machine has CE certification
|
Model |
EW-3120 |
EW-3120+C |
|
Stripping range |
10–240 mm2 |
|
|
Max stripping diameter |
45mm |
|
|
Stripping Length |
1-600mm(wire head), 1-280mm(wire end) |
|
|
Cutting length |
10-99999.99mm |
|
|
Capacity |
500-800 pcs/h (it depends on the length of the wire) |
|
|
Power |
220V, 50HZ |
|
|
Weight |
600kg |
|
|
Dimension |
1600 X 810 X 1360mm |
|
|
Stripping layer |
3 layers |
|
|
Stored programs |
0-99kinds of processing data |
|
|
Tube diameter |
16-50mm |
|
|
Tool materials |
Imported high speed steel |
|
|
Press wheel setting |
Motor drive, digital control of crimping force |
|
|
Drive |
8 wheels independently servo driven |
|
|
Air supply |
0.2-0.6mpa |
|
|
Winding range |
N/A |
≤600mm |
|
Winding bar |
N/A |
Move from up to down,winding ID adjustable |
|
Winding bar adjust range |
N/A |
200-650mm |
|
Winding height |
N/A |
<140mm |
